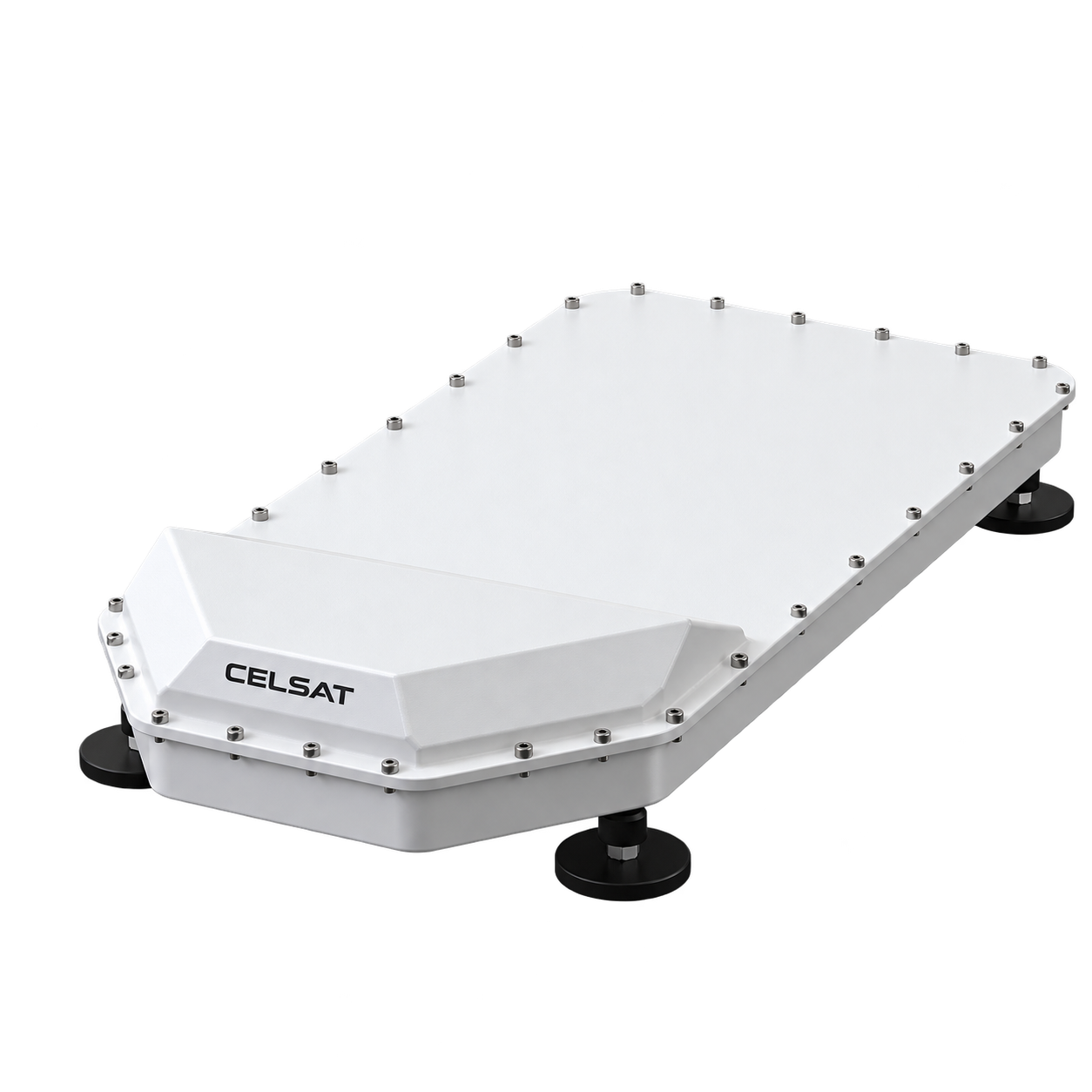

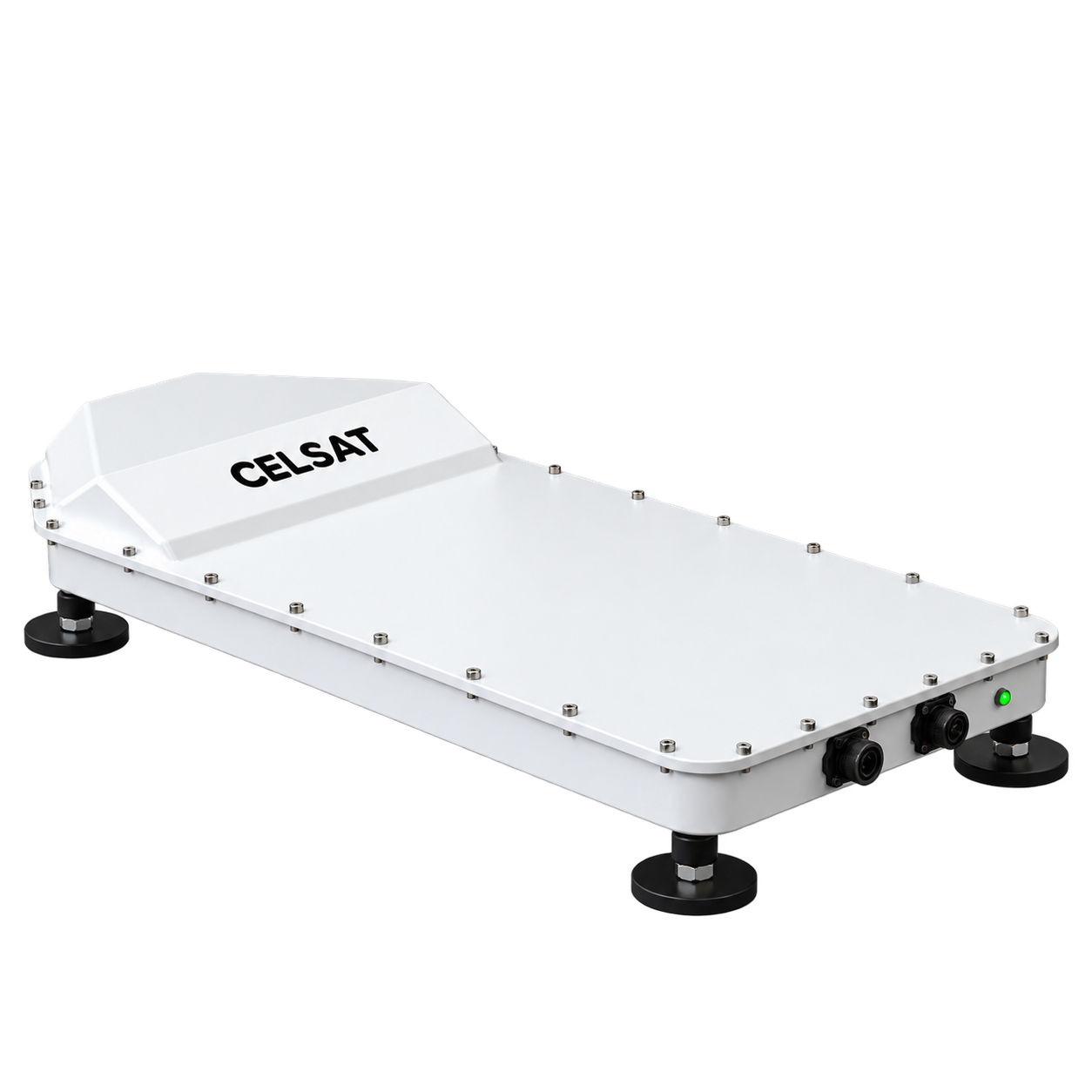

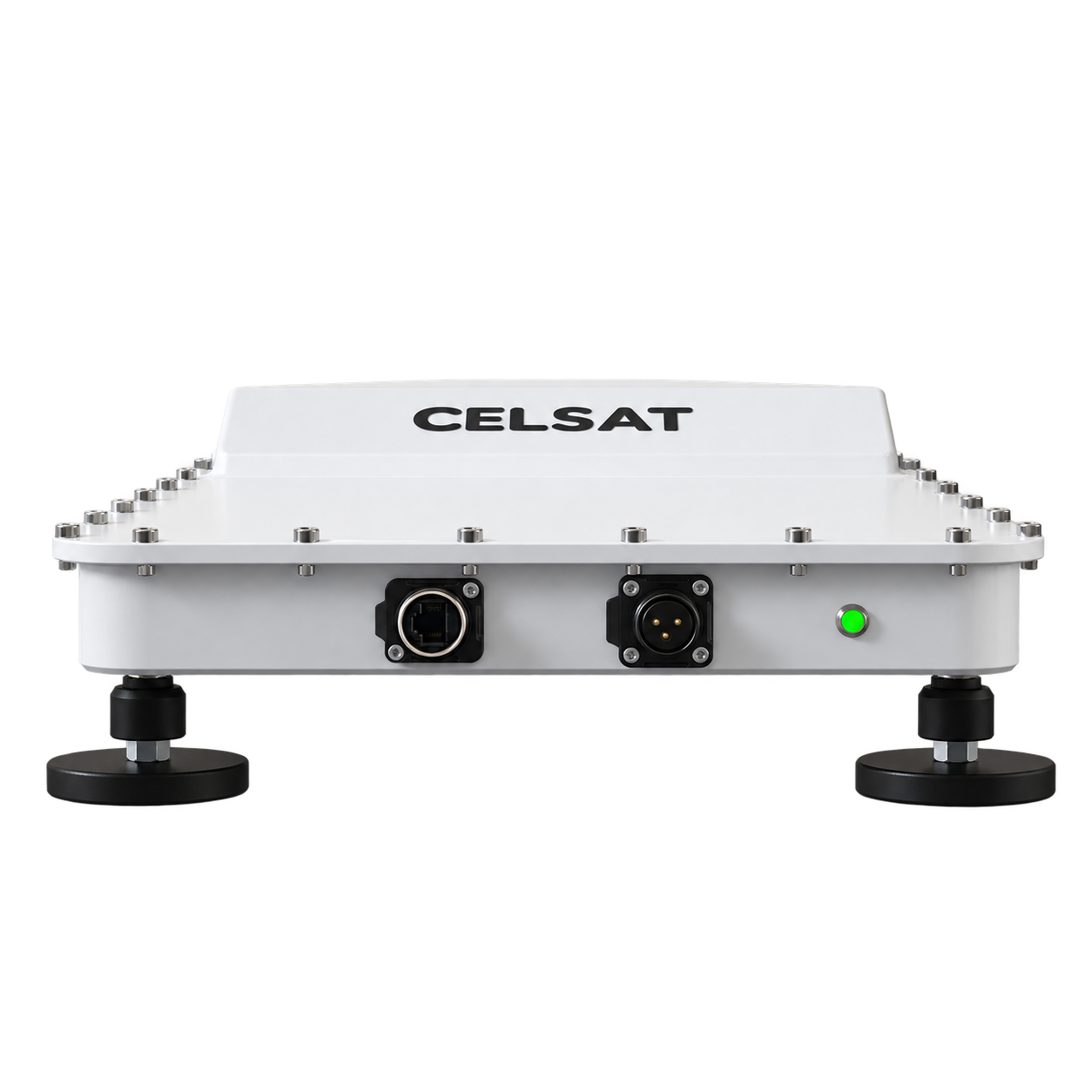

CELSAT — Front three-quarter view

CELSAT

HyMesh®

Designed for Starlink Standard

4G / 5G · Starlink · WiMesh® · WiFi

Model: STK-I8O6-E10-25-5G · V2

TECH SPECS
Download PDF

Overview

CELSAT Overview
Product nameCELSAT
ModelSTK-I8O6-E10-25-5G
Product familyHyMesh®
Product typeVehicle-mounted hybrid connectivity terminal designed for Starlink Standard
Connectivity technologies4G / 5G · Starlink · WiMesh® · WiFi
Starlink compatibilityDesigned for Starlink Standard
Cellular connectivity4G / 5G
Satellite connectivityStarlink Standard satellite connectivity
Local accessSecure WiFi for authorized nearby users and devices
Mesh connectivityWiMesh®: vehicle-to-vehicle links and coverage extension through mesh nodes such as MESH360
ManagementMeshTool Cloud
PositioningGPS location and route monitoring

HyMesh

CELSAT HyMesh
Hybrid connectivity4G / 5G and Starlink satellite connectivity, with WiMesh® networking and local WiFi access
Uplink switchingAutomatic switching between available cellular and satellite internet connections
Cellular-first profileCellular priority; satellite fallback when cellular internet connectivity is lost
Satellite-first profileSatellite priority; switching according to available connectivity
Return to cellularCellular → satellite → cellular switching demonstrated in the supplied field report
Operation in motionConnectivity switching and GPS routes documented during vehicle movement

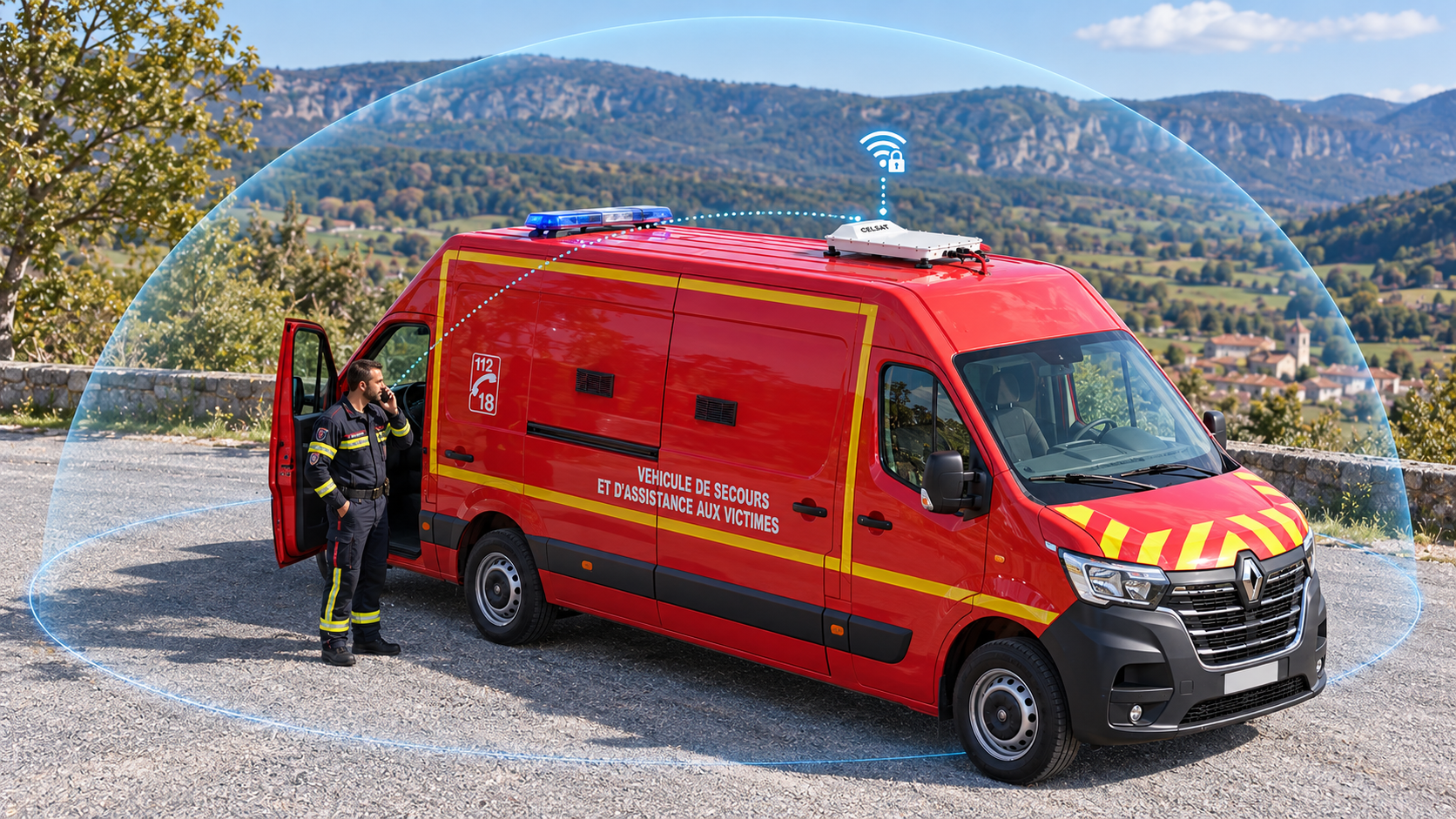

CELSAT installed on the roof of a firefighter rescue van, with a secure WiFi bubble and a driver making a smartphone call beside the vehicle
CELSAT on a fire & rescue vehicle. A secure local WiFi network connects the driver’s smartphone through the available cellular or satellite uplink. Illustrative coverage. Download image ↓

WiMesh

CELSAT WiMesh
Mesh technologyWiMesh®
Vehicle-to-vehicle networkingMesh with another WiMesh-equipped vehicle
Coverage extensionExtend the network through additional WiMesh nodes
Compatible node exampleMESH360

WiFi access

CELSAT WiFi access
WiFi accessLocal wireless access around the vehicle
Access securityWiFi access configured for authorized users and devices
Internet applicationsVoice applications, messaging and operational data over the available uplink
WiFi calling¹Subject to smartphone, mobile operator and service support

MeshTool Cloud

CELSAT MeshTool Cloud
Management applicationMeshTool Cloud
GPS monitoringUnit position and recorded routes
Radio coverageCoverage analysis and received signal strength (RSSI) measurements
Uplink visibilityCellular / satellite use and network switching history
AvailabilityEquipment availability monitoring
Interface trafficBandwidth consumption by interface
Device trafficConsumption by MAC address
Application trafficConsumption by application

Integration

CELSAT Integration

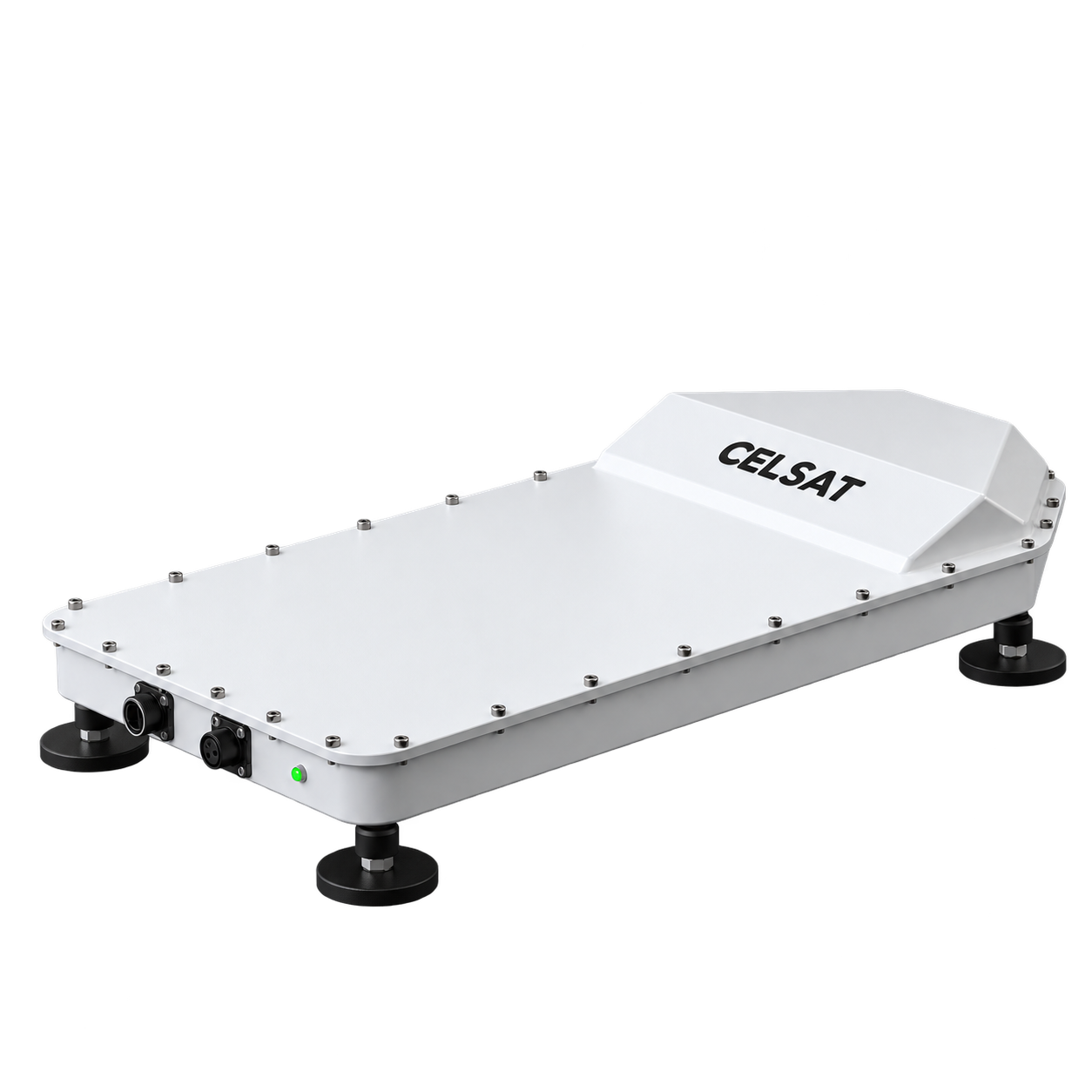

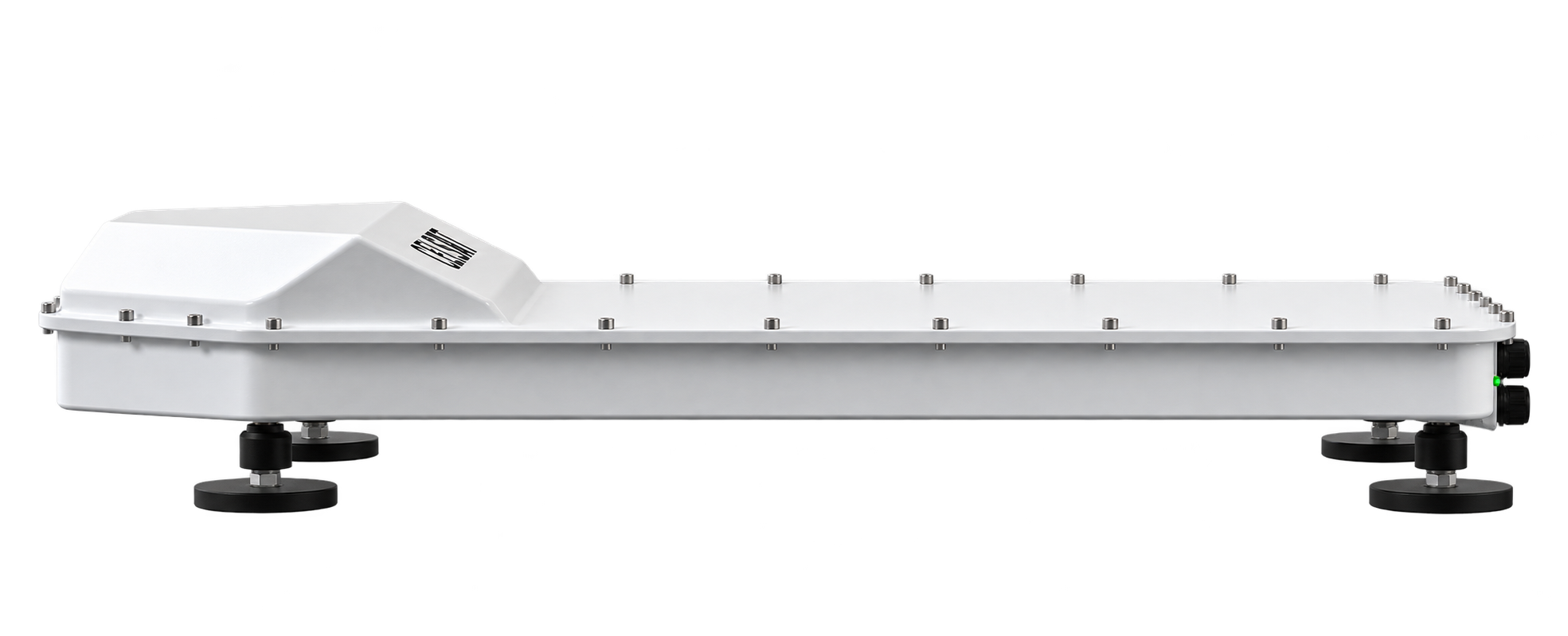

Installation formatLow-profile vehicle roof-mounted enclosure
MountingFour-foot support arrangement shown in the product views; vehicle integration to be confirmed
Electrical & mechanical dataPower ratings, dimensions, weight and installation drawing available on request
Detailed radio configurationFrequency bands, radio rates and SIM configuration available on request
Environmental specificationsEnvironmental ratings and qualification details available on request

Ordering

CELSAT Ordering
Product nameCELSAT
ModelSTK-I8O6-E10-25-5G
Package contentsAvailable on request

1. Internet voice applications use the available network connection. Native WiFi calling depends on the smartphone, mobile operator and service. Uninterrupted voice sessions during uplink switching are not specified.

2. Cellular and satellite access depend on service availability, subscriptions and installation conditions. The WiFi bubble is illustrative and does not define a coverage radius.

3. Specifications combine the supplied CELSAT deployment report and confirmed product information. Detailed hardware ratings and vehicle integration specifications are available on request.
