HYBRID NETWORKING. CONTINUOUS OPERATIONS.
HyMesh®
Every network.
One resilient architecture.
WiMesh®, cellular, satellite and wired networks in one hybrid architecture. WiFi connects your end users.
Select the best path Fail over Aggregate
01 / HYMESH® TECHNOLOGY
Different networks.
One continuous operation.
HyMesh extends WiMesh by combining mesh, cellular, satellite and wired paths in a resilient, unified architecture. WiFi provides local access for end users, while HyMesh selects the paths that carry their traffic.
WiMesh®+LTE / 5G+Satellite / VSAT+Fiber / Ethernet
More ways to reach the site
- LTE and 5G connectivity
- Satellite and VSAT integration
- Fiber and Ethernet integration
Continuity across networks
- Automatic path selection
- WAN redundancy
- Smart / automatic failover
Capacity and control
- Bonding / aggregation
- Traffic prioritization
- Multi-radio, multi-frequency operation
- Centralized network supervision
Build with licensed and unlicensed spectrum according to the selected products, available services and deployment. MeshTool Cloud brings the networks together under centralized supervision.
WiMesh® and HyMesh®: two complementary roles
| Network role | WiMesh® | HyMesh® |
|---|---|---|
| Foundation | Decentralized private wireless mesh | WiMesh extended with heterogeneous network paths |
| Available paths | Direct and multi-hop mesh links | WiMesh, LTE / 5G, satellite and fiber / Ethernet |
| Adaptation | Dynamic routes through fixed and mobile nodes | Path selection, WAN failover and configured aggregation |
| Operational role | Private coverage and resilient wireless transport | Continuity between private and public communication networks |
02 / HYBRID NETWORK ARCHITECTURE
Choose the path.
Keep the service.
Use the most suitable connection, move traffic when a path is lost, or combine available links. The policy follows your applications, network conditions and operational priorities.
Use the preferred available path.
Traffic follows the private wireless path. Fiber, cellular and satellite remain available according to the configured policy.
The right link for the job.
Define preferred networks and traffic priorities for operational video, voice, telemetry and business applications.
An alternative when it matters.
Automatic selection and WAN redundancy maintain a route across heterogeneous networks when the preferred connection becomes unavailable.
Combine available connectivity.
Bonding and aggregation can combine links where supported by the selected equipment, configuration and network services.
03 / HYMESH® PRODUCTS
Hybrid connectivity.
Designed for your deployment.
Industrial integration, mobile fleets and rapid deployment.
Four platforms. One hybrid approach.

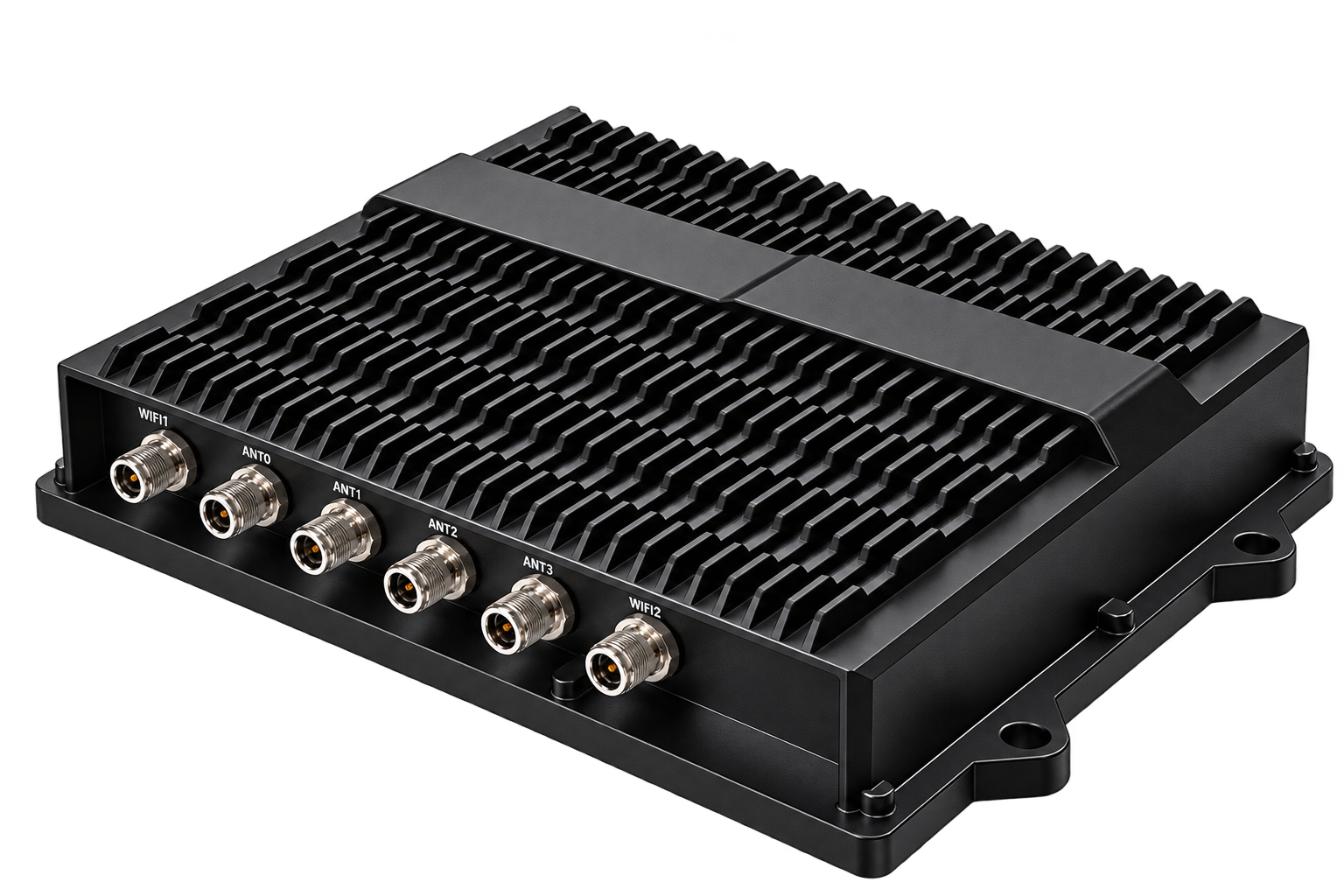

INDUSTRIAL HYBRID ROUTER
MEGAMESH-PRO X1
Cellular connectivity, private mesh links and local WiFi access in an industrial outdoor platform.
- 5G NR / LTE Cat 20
- WiMesh + WiFi 6 on the same radio interface
- Dual-band 2.4 / 5 GHz · IP67 · M12 interfaces

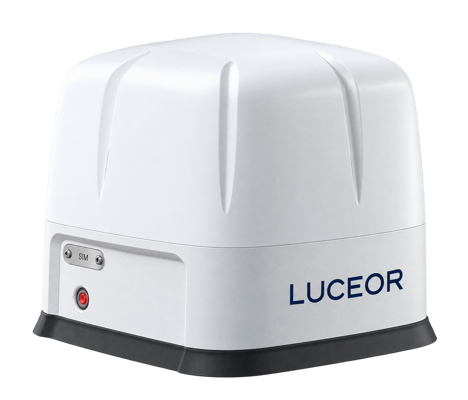

MOBILE HYBRID ROUTER
AIR3005
Keep vehicles connected through private WiMesh and 5G/LTE, with local WiFi for onboard users and equipment.
- 2× 5 GHz + 1× 2.4 GHz WiMesh / WiFi radios
- 5G NR SA / NSA · LTE Cat 20 · integrated GNSS
- Integrated antennas · 1 GbE PoE · IP67

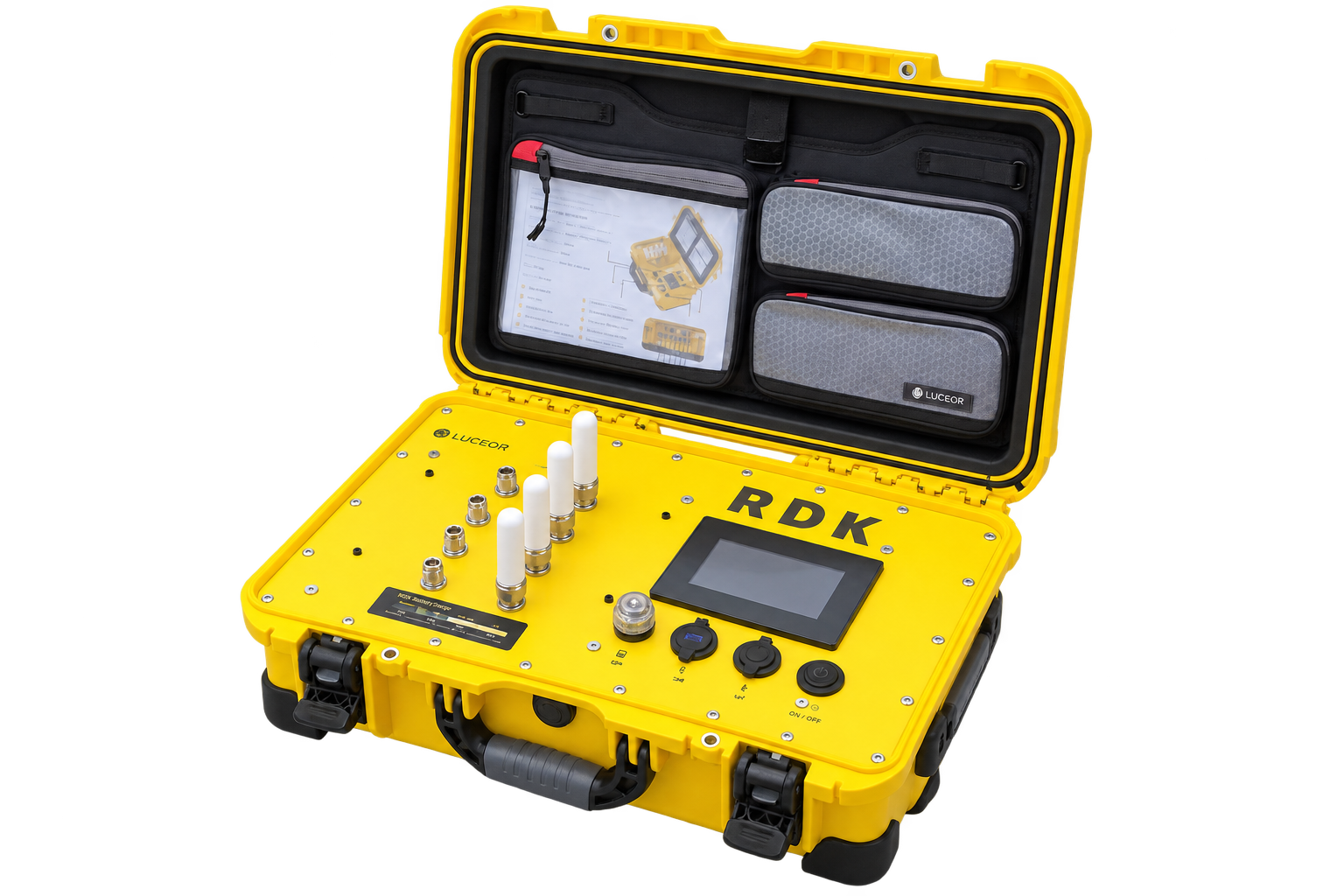

RAPID DEPLOYMENT KIT
RDK
Deploy a secure local WiFi network with satellite, cellular and external WiMesh connectivity.
- Designed for Starlink Standard
- 5G + external WiMesh terminal + local WiFi 6
- Integrated battery · Portable hard case

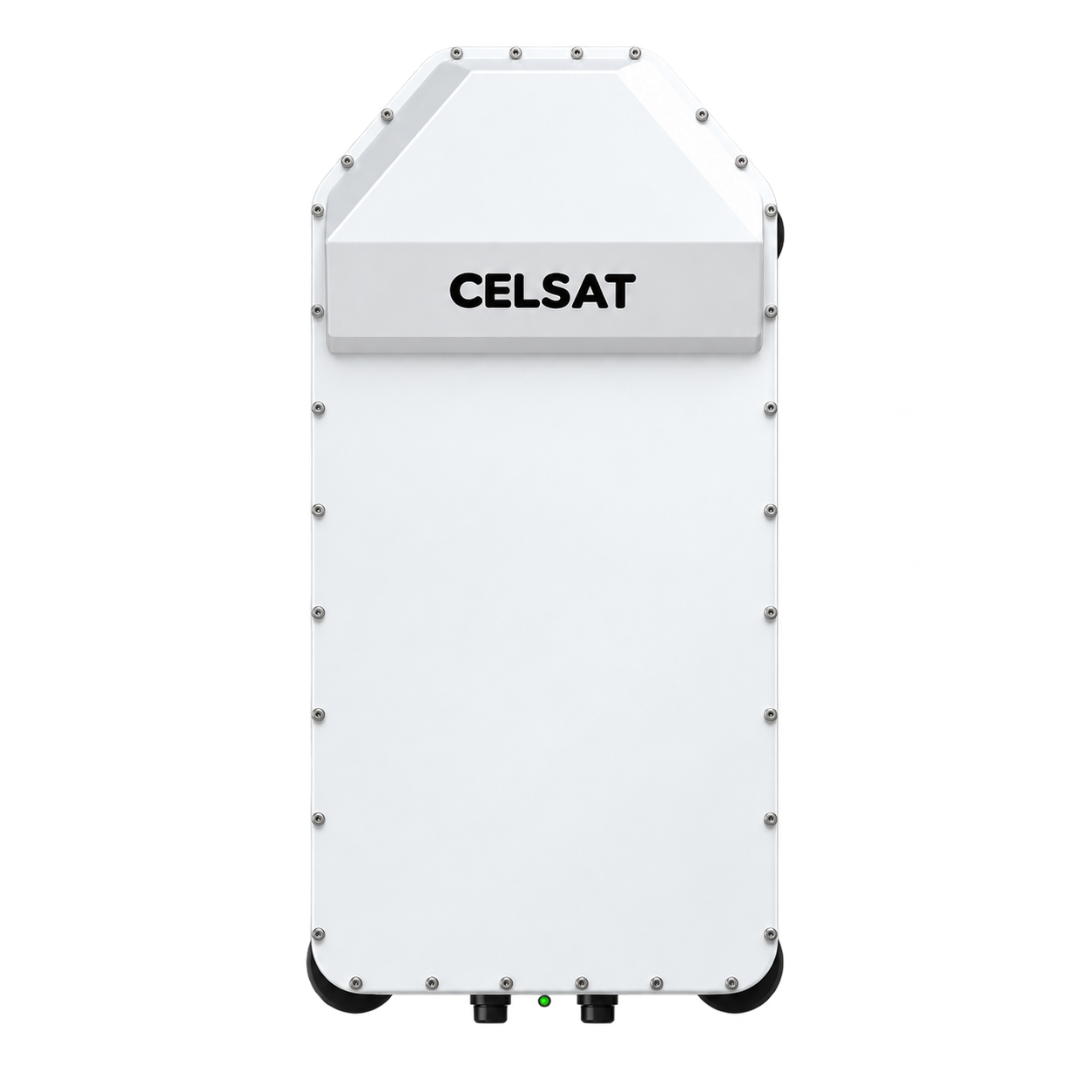

VEHICLE-MOUNTED CONNECTIVITY
CELSAT
Bring hybrid connectivity and a secure local WiFi bubble to teams operating around a vehicle.
- Designed for Starlink Standard
- 4G / 5G + Starlink + WiMesh + WiFi
- Vehicle-to-vehicle mesh and extension via MESH360
HyMesh products are supplied on quotation, with radios, antennas, uplinks and operating policies selected for your project.
04 / LTE / 5G INTEGRATION
Private mesh.
Public or private cellular.
Extend continuity beyond the mesh footprint. When a WiMesh link is interrupted or unavailable, a cellular path can connect the asset to its operational network through a private, encrypted tunnel.
HYMESH® FOR MOBILITY / PORTS
Containers block a link.
Operations keep moving.
MEGAMESH-PRO X1 connects mobile carriers to the port’s fixed FLEX X4 and sector-antenna infrastructure. If WiMesh coverage is lost, public or private 5G provides an encrypted path to the Terminal Operating System.
WiMesh carries traffic from the carrier to the private port network.
20-second sequenceWiMesh5G + encrypted tunnelUnavailable path
Keep the private mesh backbone.
Fixed masts use FLEX X4 routers with S90WB-4P-N sector antennas, as in the WiMesh architecture. MEGAMESH-PRO X1 is installed on the carrier to add cellular continuity.
Cellular takes the next route.
When a carrier leaves mesh coverage or containers obstruct the path, HyMesh selects the available public or private 5G connection.
The TOS stays on a secure path.
Carrier data reaches the port’s TOS server through a private encrypted tunnel, keeping the operational network separate from the public transport network.
HYMESH® FOR CITY
Beyond mesh coverage.
Still connected to your 2C.
Municipal vehicles and drone video share the city’s private network. AIR3005 vehicles and 5G-equipped drones can switch to public 5G when WiMesh is lost, using encrypted tunnels to the command center.
Vehicle traffic and drone video travel over the private WiMesh network.
20-second sequenceWiMesh accessFixed backhaulPublic 5G + encrypted tunnelsUnavailable path
01
MUNICIPAL VEHICLES
AIR3005 maintains the route.
Service vehicles, refuse trucks and ambulances use WiMesh when available and public 5G with a private encrypted tunnel to the 2C when mesh coverage is lost.
02
DRONES & LIVE VIDEO
Keep the control center in view.
MESH360 nodes on high points provide WiMesh access. A 5G interface on the drone enables the alternate public-cellular path and encrypted tunnel to the city 2C.
05 / SATELLITE & VSAT INTEGRATION
Reach beyond
terrestrial networks.
Combine satellite backhaul with mesh, cellular and local access. Use it as the primary connection, a fallback path or part of a configured aggregation strategy for remote and mobile operations.

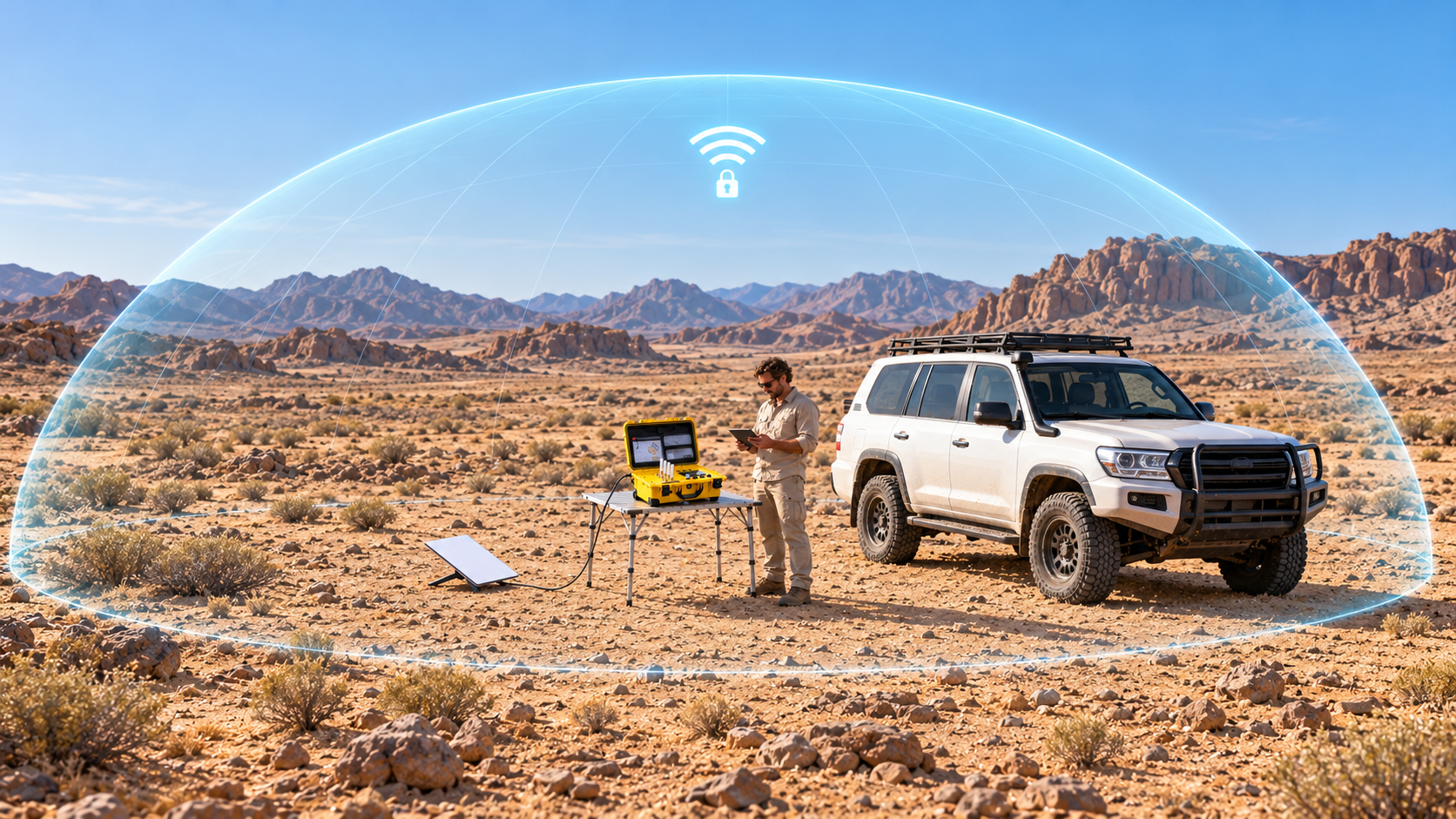

RDK / RAPID DEPLOYMENT
A network where the mission starts.
Set up a portable hybrid connection with an integrated battery, a Starlink Standard antenna, cellular backhaul and local WiFi access.
Designed for Starlink StandardDiscuss an RDK deployment →

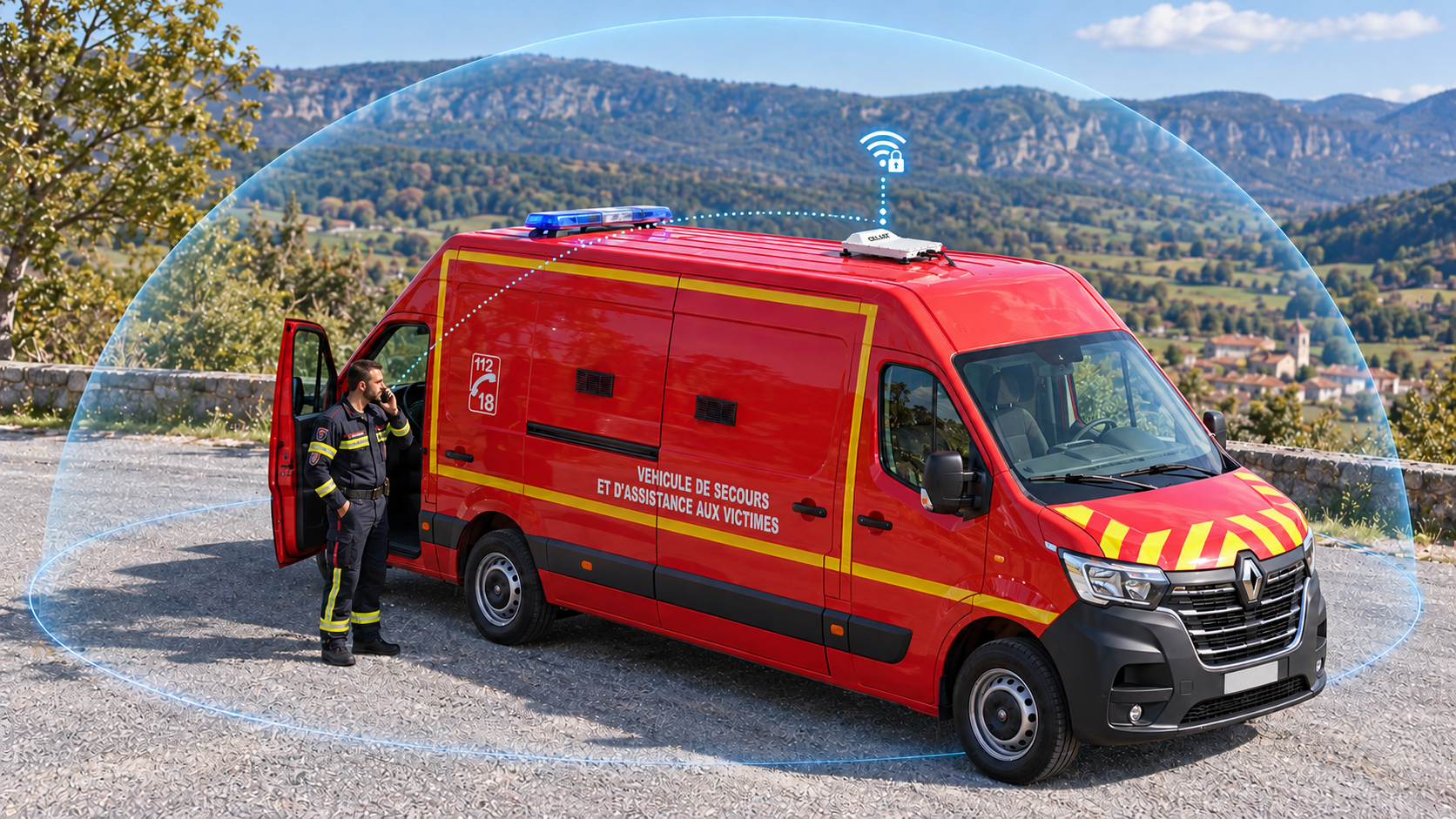

CELSAT / VEHICLE OPERATIONS
Bring connectivity with the team.
Combine Starlink, 4G / 5G, WiMesh and secure WiFi around the vehicle. Connect another vehicle or extend coverage through WiMesh nodes such as MESH360.
Designed for Starlink StandardDiscuss a CELSAT deployment →Integrate your satellite service.
VSAT terminals and other satellite systems can join the HyMesh architecture through an Ethernet handoff. Combine them with fiber, cellular or WiMesh according to the site, vessel or deployment.
06 / HYMESH® FOR AI
Intelligence at the edge.
Continuity all the way back.
Edge AI modules such as AIVI need to exchange events, results and updates with remote servers. HyMesh connects the shared field network to the organization’s datacenter through the available backhaul.

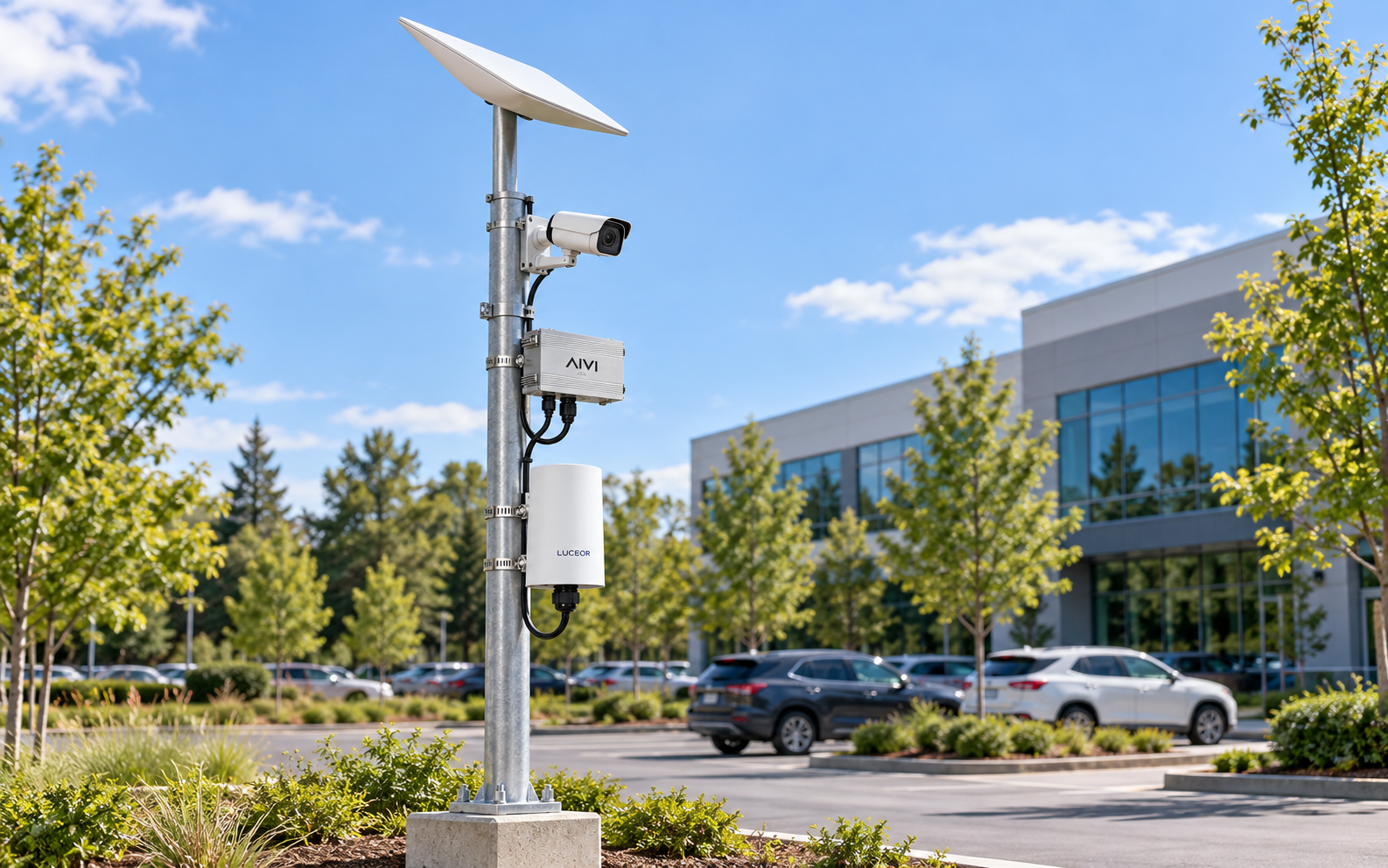

Starlink at the top · Camera · AIVI · 5G TUBE
LOCAL INFERENCE. HYBRID TRANSPORT.
Share connectivity
across your edge deployment.
Connect cameras and AIVI edge modules through the shared WiMesh or Ethernet network. 5G TUBE and a Starlink terminal add alternative backhauls; shared hybrid gateways reduce dependence on a separate 5G subscription for every module.
Prioritize alarms, telemetry and operational events. Use policy-based selection, failover or aggregation for the connection to your remote services.
Keep intelligence near the source.
AIVI analyzes video at the edge and sends the events, results and selected streams your applications need.
Protect operational information.
Define priorities for alerts and real-time data alongside video transport, remote management and software updates.
See the whole network.
MeshTool Cloud provides centralized network supervision across the hybrid architecture and its fixed and mobile assets.
MANY NETWORKS. ONE OPERATION.
Designed for the field.
LET’S BUILD YOUR NETWORK
Tell us about
your project.
From an isolated site to a mobile fleet, we help combine your available networks into a HyMesh architecture.
- Coverage and site constraints
- Fixed and mobile assets
- Video, data and latency requirements
- Available fiber, cellular and satellite services
- Failover, aggregation and traffic priorities
HyMesh products are available on quotation,
with a configuration tailored to your deployment.
