Sense continuously
Track link conditions as they change throughout the transmission.
DOWN TO50 kbps
Video bitrate on constrained links
COMPRESSIONH.265
Efficient video encoding
POWER CONSUMPTION< 10 W
For power-sensitive installations
COMPACT FOOTPRINT105 × 90 × 35 mm
Easy to integrate close to the source
01 / Intelligent adaptation
The network changes.
The stream adapts.
The system continuously monitors link quality and adjusts video bitrate and resolution together. Fast convergence balances picture quality, stream stability and bandwidth consumption as conditions evolve.
NETWORK-AWARE ENCODING
One stream. Changing conditions.
Available link capacityAdaptive video bitrate
Relative capacity / bitrateNetwork conditions over time →
Continuously sense the link.
Adjust bitrate and resolution together.
Illustrative behaviour · Curves are not measured device performance.
LIMITED CAPACITY
Keep video flowing when bandwidth is scarce.
Lower the bitrate and scale the resolution to fit the link. Video streaming remains possible at bitrates as low as 50 kbps under constrained network conditions.
VIDEO BITRATE AS LOW AS50 kbps
- Bitrate
- Reduced to fit the link
- Resolution
- Scaled down as needed
- Priority
- Stream continuity
Converge quickly
Adapt bitrate and resolution to keep the stream aligned with available capacity.
Recover picture detail
Return to the camera’s original resolution when sufficient bandwidth is available.
02 / From camera to operations
Your camera stream.
A more efficient journey.
Start with the camera’s RTSP link. The module compresses the video using H.265 and adjusts its resolution before delivering an SRT or RTSP output stream across your network.
IP camera
RTSP video input
RTSP
Adaptive compression
H.265 · bitrate · resolution
SRT / RTSPAcross your network
Monitoring
Receive the adapted stream
INPUT
RTSP
Use the RTSP link from your camera as the video source.
OUTPUT
SRT
Deliver an SRT stream, with an optional stream passphrase.
OUTPUT
RTSP
Deliver an RTSP stream, with optional username and password authentication.

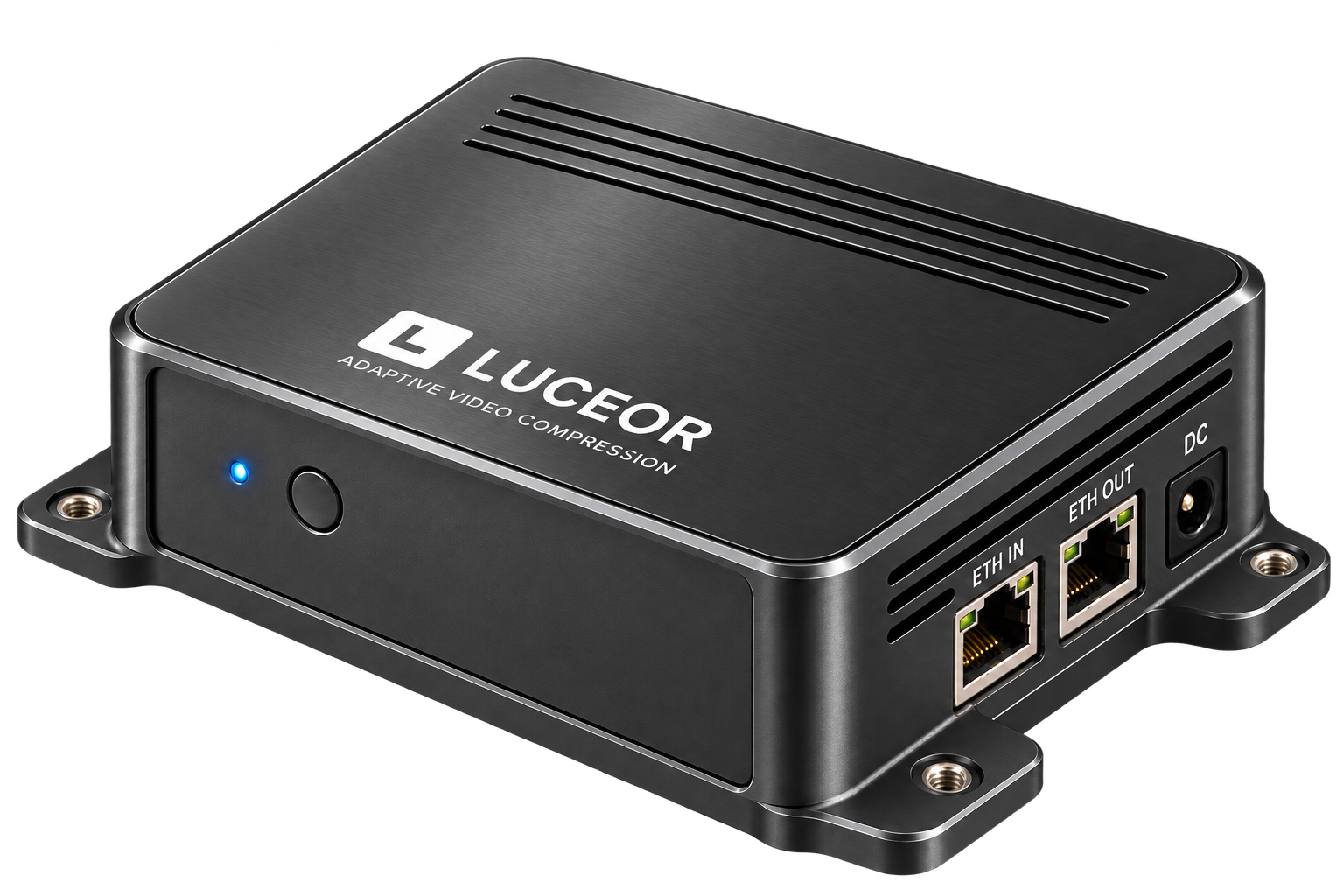

03 / The module
Small footprint.
Precise control.
A compact system for space- and power-constrained installations. Configure your bitrate policy through an intuitive interface, then retain those settings through unexpected power interruptions.
Adaptive Video
Compression System
105 × 90 × 35 mm · Less than 10 W
CHOOSE YOUR BITRATE POLICY
Let the stream adapt within your limits.
Configure minimum and maximum bitrate thresholds. An adjustable upper ceiling helps improve stream stability and control bandwidth usage.
- Video compression
- H.265
- Physical interfaces
- 2 × Ethernet — ETH IN / ETH OUT
DC power input - Video input
- RTSP stream from the camera
- Video output
- SRT or RTSP
- Bitrate control
- Adaptive with configurable minimum / maximum limits, or fixed static bitrate
- Lowest video bitrate
- Down to 50 kbps
- Resolution
- Dynamic adjustment, up to the camera’s original resolution when bandwidth permits
- Link monitoring
- Continuous sensing with fast convergence
- Output protection
- Optional SRT passphrase; optional RTSP username / password
- Configuration
- Intuitive interface with persistent settings
- Power recovery
- Saved settings restored and video conversion resumed automatically after unexpected power loss
- Dimensions
- 105 × 90 × 35 mm
- Power consumption
- < 10 W
VIDEO FROM THE FIELD04 / Designed for constrained networks
Keep sight of
remote operations.
Make better use of limited or changing bandwidth, wherever video has to travel beyond the camera.

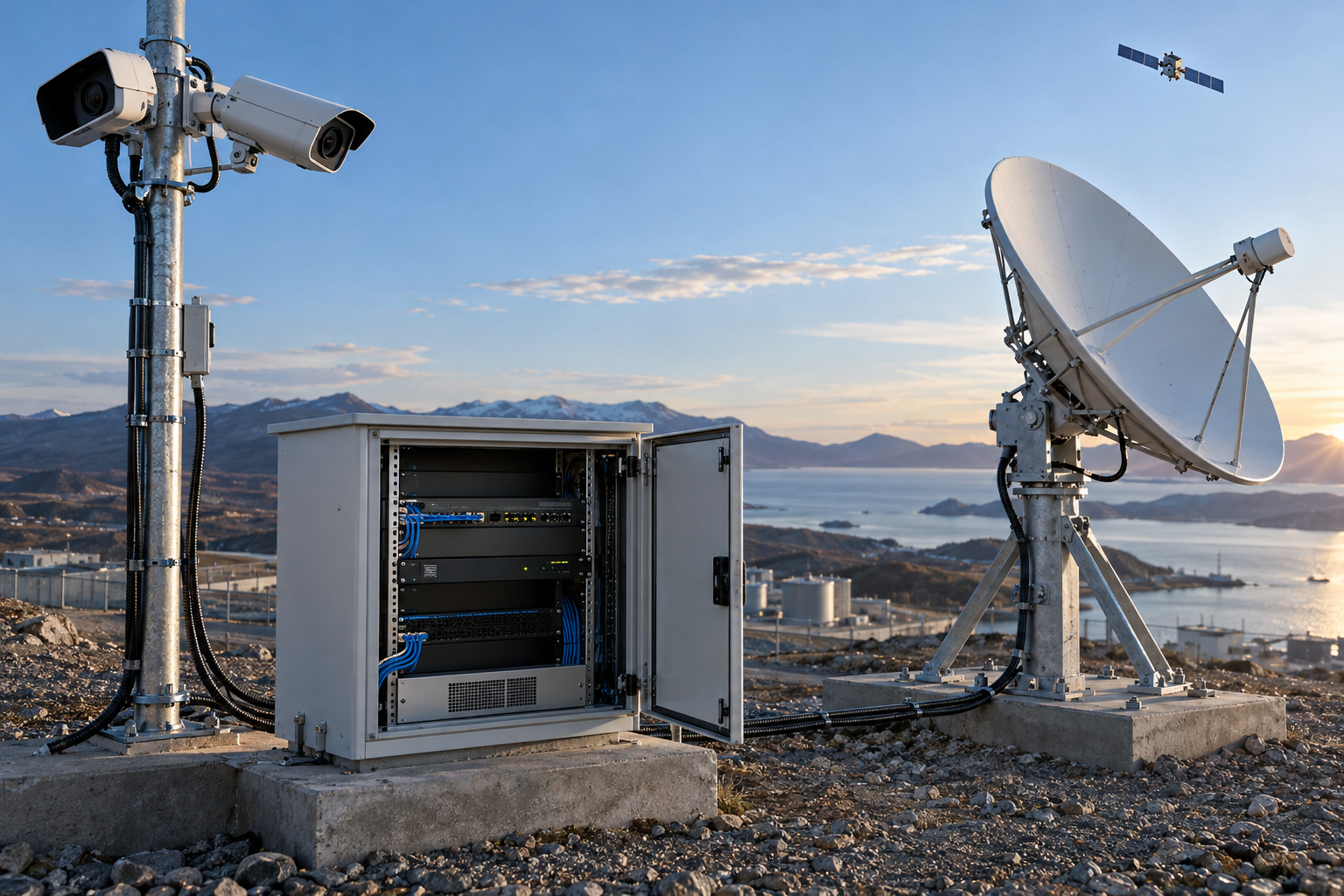

Remote surveillance
Carry field video over scarce backhaul capacity, including satellite links.
Mobile video transmission
Adapt the stream as network conditions change along the journey.
Wireless communication links
Keep video transmission aligned with variable link capacity.
Let’s talk about your project
Your camera. Your link.
Let’s find the right balance.
Tell us about your video source, available bandwidth and monitoring environment. Our team will help you define the right compression and streaming configuration.
