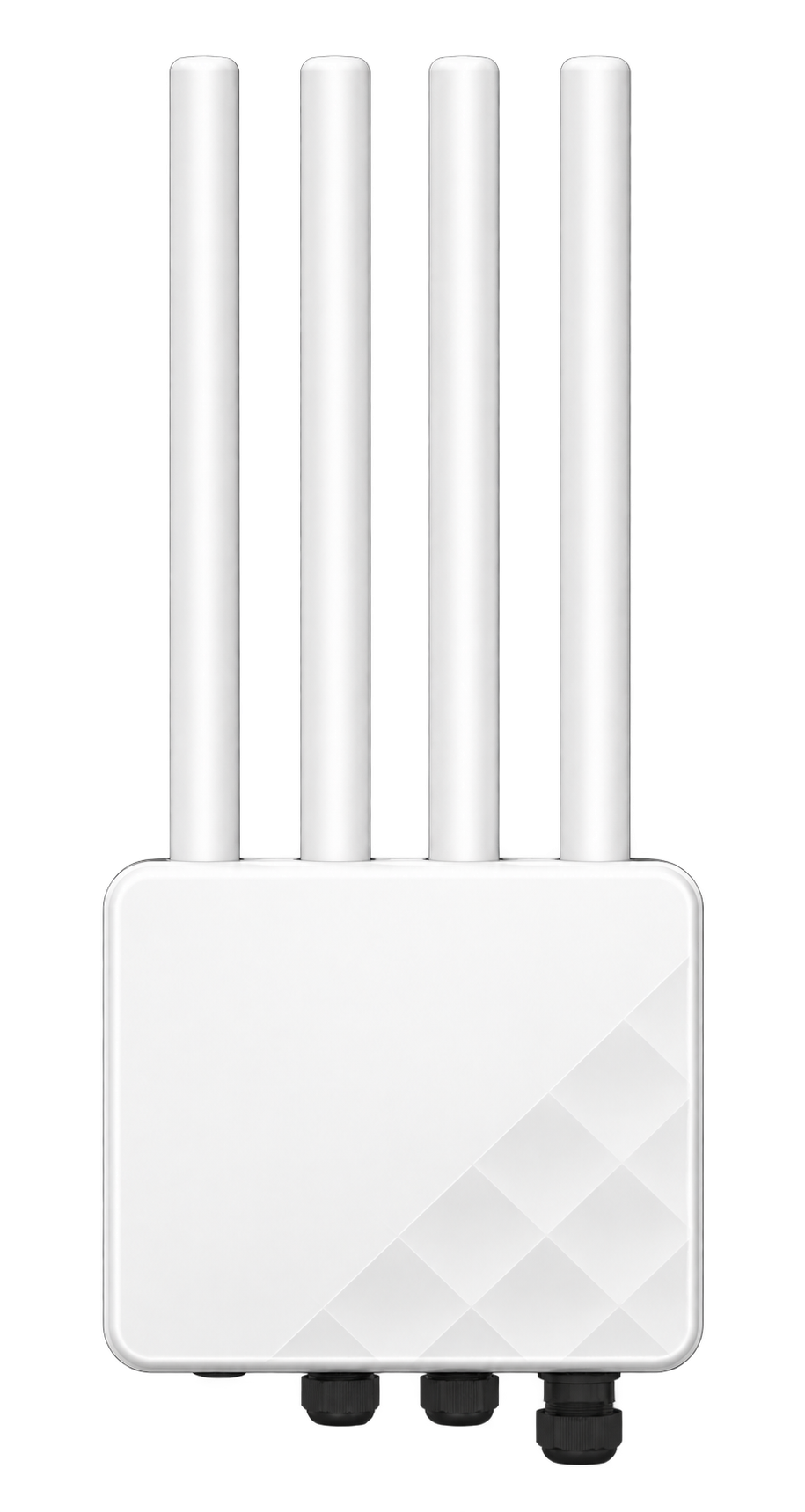

MEGAMESH X2 — Front view with antennas

MEGAMESH X2

WiMesh®

Extra-ruggedized dual-band WiMesh router

TECH SPECS
Download PDF

Overview

MEGAMESH X2 Overview
Product nameMEGAMESH X2
ModelOWX-E4-S2E10-25
Product typeExtra-ruggedized dual-band WiMesh router
Wireless technologyWiMESH / WiFi 6 · IEEE 802.11ax
Radio configurationTwo radios · 2.4 GHz + 5 GHz
Radio rolesEach band configurable for WiMesh or local WiFi access
Mixed-mode example5 GHz WiMesh backhaul + 2.4 GHz local WiFi access point
Spatial diversity2×2 MIMO per band
Network interfaces2× Gigabit Ethernet + 1× 1G SFP
Enclosure / protectionMetal · IP67

Radio & Antennas

MEGAMESH X2 Radio & Antennas
Wireless technologyWiMESH / WiFi 6 · IEEE 802.11ax
Radio configurationDual-band 2.4 / 5 GHz
2.4 GHz operating range¹2.400–2.484 GHz
5 GHz operating range¹5.150–5.850 GHz
Maximum PHY rates²2.4 GHz: 574 Mbps
5 GHz: 2,402 Mbps
Spatial diversity2×2 MIMO per band
Antenna configurationExternal antennas; other compatible antenna models supported
Supplied antennas4× 6 dBi dual-band
Multiple SSIDs4 per band
WiFi client capacity³128 total · 64 per band
WiFi roaming assistanceIEEE 802.11k/v

Hardware

MEGAMESH X2 Hardware
Network interfaces2× Gigabit Ethernet + 1× 1G SFP
Processor / chipsetQualcomm IPQ5018 + QCN6102 + QCA8337
RAM512 MB
Flash memory8 MB SPI NOR + 128 MB NAND
Power inputIEEE 802.3at PoE
Maximum power consumption<18 W
ESD protection±8 kV air · ±6 kV contact
Surge protection4 kV common mode · 2 kV differential mode

WiMesh

MEGAMESH X2 WiMesh
Operating systemLuceorOS with integrated WiMesh
Mesh standardIEEE 802.11s
Mesh routingProactive link-state routing · Dynamic path selection
Network resilienceSelf-forming and self-healing · Multi-hop forwarding
Node supportFixed and mobile mesh nodes
2.4 GHz interfaceWiMesh or local WiFi access point
5 GHz interfaceWiMesh or local WiFi access point
Mixed-mode operation5 GHz WiMesh + 2.4 GHz local WiFi AP; reverse assignment also supported
Dual-band meshBoth interfaces may be configured for WiMesh
IP operating modesGateway / Access Point

Network & Security

MEGAMESH X2 Network & Security
VLANIEEE 802.1Q · SSID-based VLAN assignment · Ethernet VLAN trunk · Tagged / untagged management
IP and routingIPv4 / IPv6 · Static / dynamic IP · DHCP client · NAT · VRRP
Discovery / provisioningLLDP · Zero-configuration deployment · Wireless device provisioning
Data forwardingTunnel and direct forwarding
Isolation and access controlStation isolation within the same VLAN · Access control lists
Radio optimizationAutomatic channel scanning and interference avoidance · Automatic / manual rate selection
SSID visibilitySSID hiding supported
Frame aggregationA-MPDU and A-MSDU · Transmit / receive
Wireless securityWPA / WPA2 / WPA3 · PSK and 802.1X / EAP authentication
Wireless protectionWIDS / WIPS
Network protectionIP Source Guard · DHCP snooping · MAC / portal authentication
VPNSSL/TLS-based VPN · Client / server certificates · AES encryption
Traffic prioritizationWMM · Per-radio QoS · Uplink / downlink priority mapping
SchedulingPriority queues and packet scheduling · WMM power saving
Bandwidth managementPer-user bandwidth limits · Adaptive bandwidth management based on user load and radio conditions
Local managementWeb interface · HTTP / HTTPS
Centralized supervisionMeshTool / MeshTool Cloud
MonitoringSNMP v2c / v3 · Real-time monitoring and fault diagnosis · System alarms
MaintenanceNTP · Remote software updates

Physical & Ordering

MEGAMESH X2 Physical & Ordering
EnclosureExtra-ruggedized metal enclosure
Ingress protectionIP67
Dimensions243.2 × 218.3 × 64.1 mm
Operating temperature−40 to +70 °C
Operating humidity5–95%, non-condensing
ModelOWX-E4-S2E10-25
Package contentsFull list available on request

1. Available frequencies and transmit settings depend on the country of operation and the selected configuration.

2. PHY rates are theoretical maxima per band, not measured application throughput. Actual performance and range depend on radio conditions, antennas, peer equipment and mesh topology.

3. Client capacity refers to WiFi access operation; it is not a guaranteed mesh-node count. Software features depend on the deployed LuceorOS configuration.
