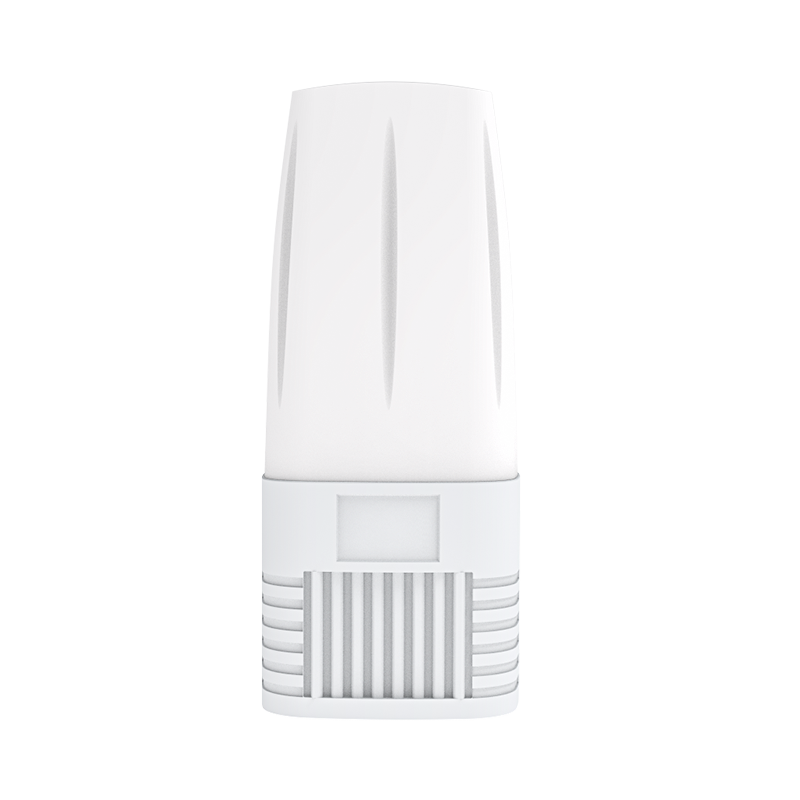

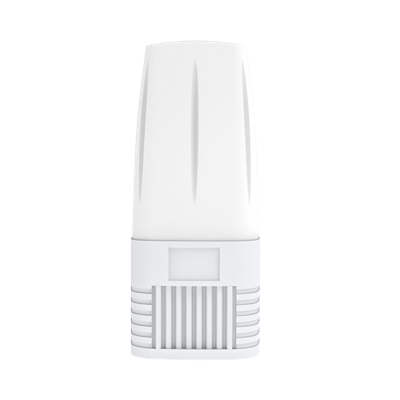

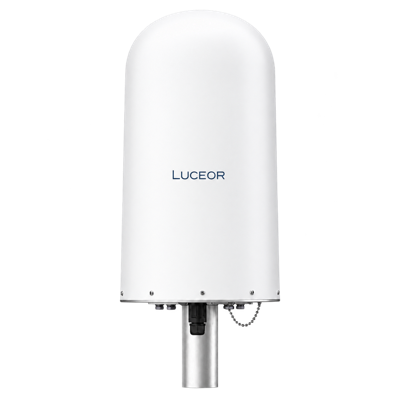

MESH360

WiMesh®

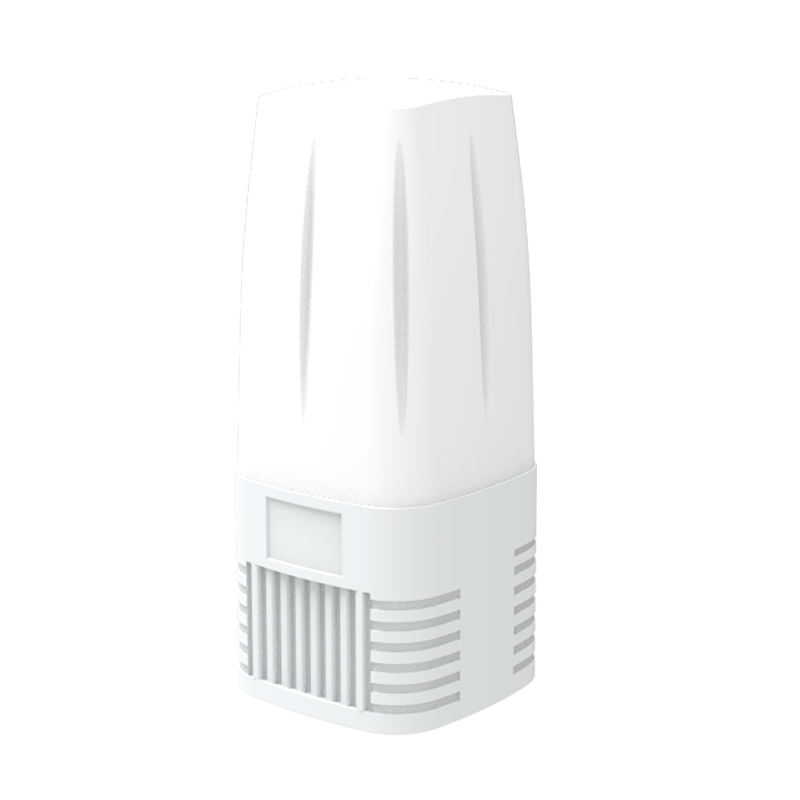

Nine-radio directional mesh router

TECH SPECS
Download PDF

Overview

MESH360 Overview
Product typeDirectional WiMesh router for fixed and mobile networks
Wireless technologyWiFi 6 · IEEE 802.11ax
Concurrent radios9 · 6× 5 GHz + 3× 2.4 GHz
Directional radio flows6 parallel flows at 5 GHz
3 parallel flows at 2.4 GHz
Beam managementDynamic directional beam-steering
WiMeshIntegrated · Dynamic mesh path selection
PositioningIntegrated GPS / GNSS · Real-time tracking
Weather protectionIP67

Radio & Antennas

MESH360 Radio & Antennas
Radio architecture3 radio modules · 2× 5 GHz + 1× 2.4 GHz per module
5 GHz standardsIEEE 802.11n/ac/ax
2.4 GHz standardsIEEE 802.11n/ax
Spatial diversity2×2 MIMO per radio
5 GHz operating frequencies5,180–5,825 MHz¹
2.4 GHz operating frequencies2,412–2,482 MHz¹
5 GHz channel widths20 / 40 / 80 / 160 MHz¹
2.4 GHz channel widths20 / 40 MHz¹
Maximum PHY rate per 5 GHz radioUp to 2,402 Mbps²
Maximum PHY rate per 2.4 GHz radioUp to 573 Mbps²
Maximum modulation1024-QAM
Maximum transmit power26 dBm per radio · ±2 dB tolerance¹
Link distanceLong-range directional WiMesh; depends on line of sight, peer equipment and site conditions
Antenna systemIntegrated directional sectors
5 GHz sectors6× 60° horizontal sectors
5 GHz gain14 ±0.5 dBi
5 GHz antenna frequency range5150–5875 MHz
2.4 GHz sectors3× 120° horizontal sectors
2.4 GHz gain8 ±1 dBi
2.4 GHz antenna frequency range2400–2500 MHz
2.4 GHz vertical beamwidth25° ±5°
PolarizationH + V (horizontal / vertical)
GNSS antennaIntegrated omnidirectional
GNSS constellationsGPS · Galileo · GLONASS · BeiDou

Hardware

MESH360 Hardware
CPU3× IPQ5018 · Dual-core A53 at 1 GHz
Memory3× (512 MB DDR3L + 8 MB NOR + 128 MB NAND)
Ethernet interfaces1× 1 GbE + 1× 2.5 GbE
M12 connectors
DC power input12–56 V DC
Maximum power consumption40 W · Depends on radio configuration
Status indicatorsPower · System status
ResetReset / reboot button

Software

MESH360 Software
Operating systemLuceorOS with integrated WiMesh
Mesh networkingIEEE 802.11s · Proactive link-state routing · Dynamic path selection
Radio optimizationAutomatic beam-steering · Automatic channel scanning and interference avoidance · Automatic / manual rate selection
VLANIEEE 802.1Q · SSID-based VLANs · Ethernet VLAN trunk · Tagged / untagged management
IP and routingIPv4 / IPv6 · DHCP client · NAT · VRRP · LLDP
Forwarding and isolationTunnel / direct forwarding · Station isolation · Access control lists
Frame aggregationA-MPDU and A-MSDU
Wireless securityWPA / WPA2 / WPA3 · PSK and 802.1X authentication
Additional securityWIDS / WIPS · DHCP snooping · IP Source Guard · MAC / portal authentication
VPNVPN support with AES encryption
Quality of serviceWMM · Priority queues · Per-radio QoS · Uplink / downlink prioritization
ManagementLocal web interface · MeshTool supervision / MeshTool Cloud
Monitoring and maintenanceSNMP v2c / v3 · NTP · System alarms · Remote software updates
Position trackingIntegrated GNSS for real-time location tracking

Physical & Ordering

MESH360 Physical & Ordering
Dimensions380 × 150 × 150 mm
Weight4.7 kg
Enclosure materialsAluminium and ABS
Ingress protectionIP67
Operating temperatureComplete product rating to be confirmed³
Radio-board temperature range−40 to +70 °C³
Compliance documentationAvailable on request
ModelMESH360
Product referenceMESH360-X9
Package contentsAvailable on request

1. Available frequencies, channel widths and transmit power depend on the country of operation and product configuration.

2. PHY rates are theoretical maxima per radio from the radio-platform specification. They are not measured application throughput or an aggregate system throughput guarantee. Actual capacity and range depend on the network, radio conditions and peer equipment.

3. The legacy product datasheet states −40 to +80 °C; the radio-component specification states −40 to +70 °C. The assembled MESH360 operating-temperature rating requires confirmation. The component range is not a certified whole-product rating.

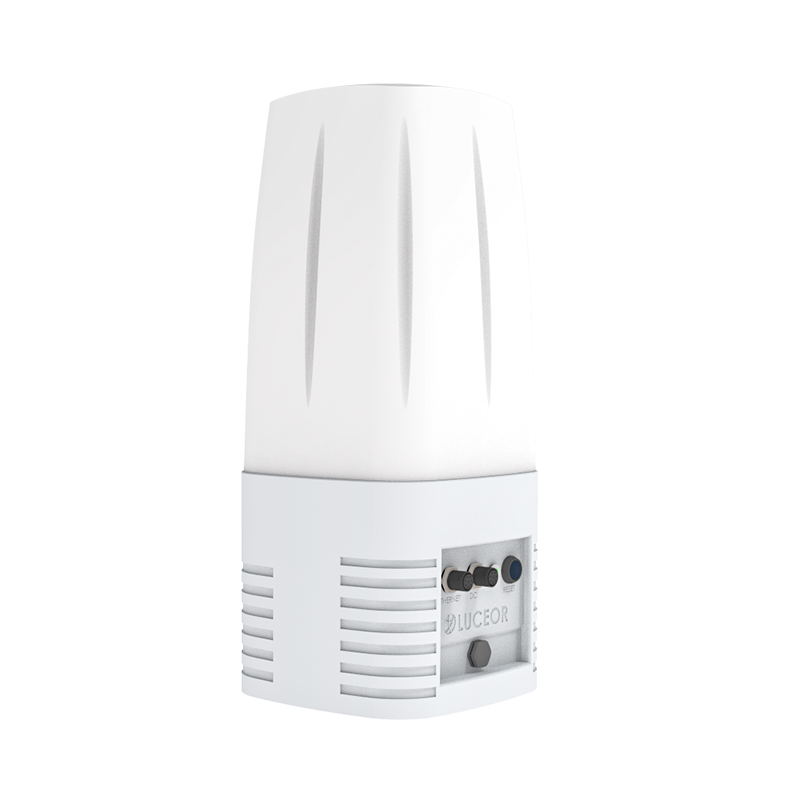

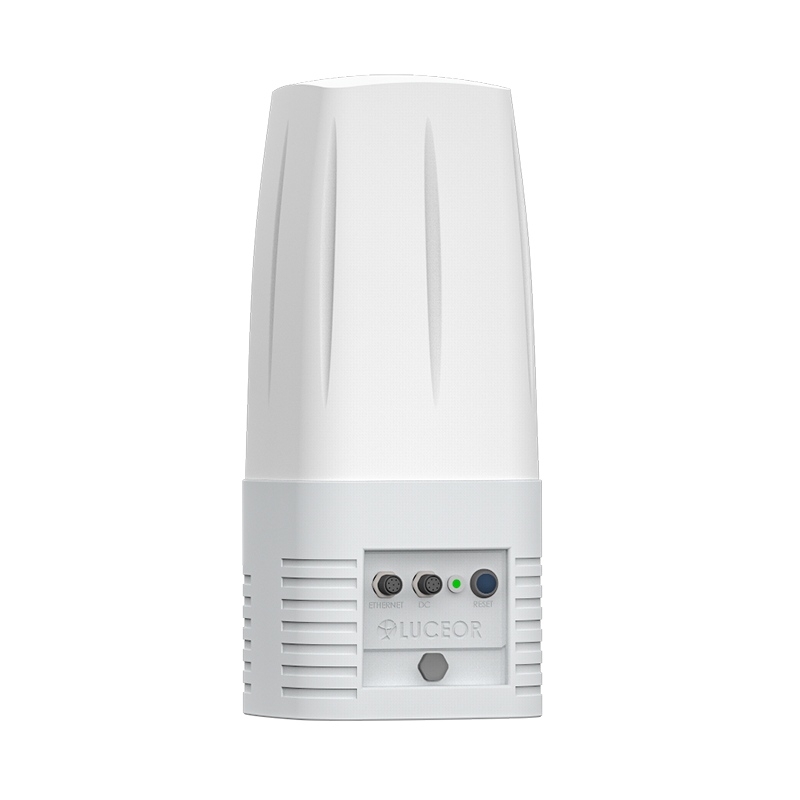

MESH360 — Front view — connectors and LEDs
